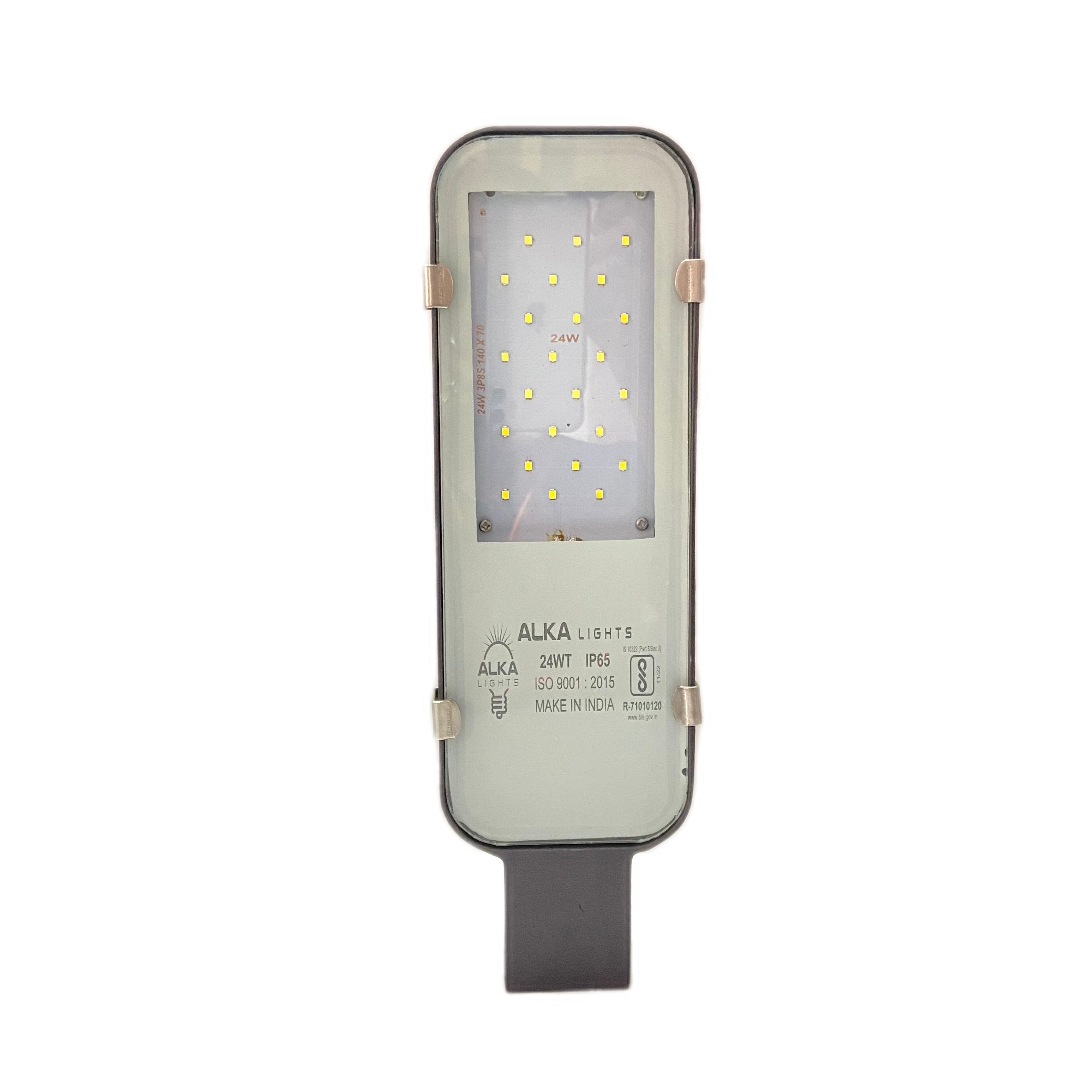

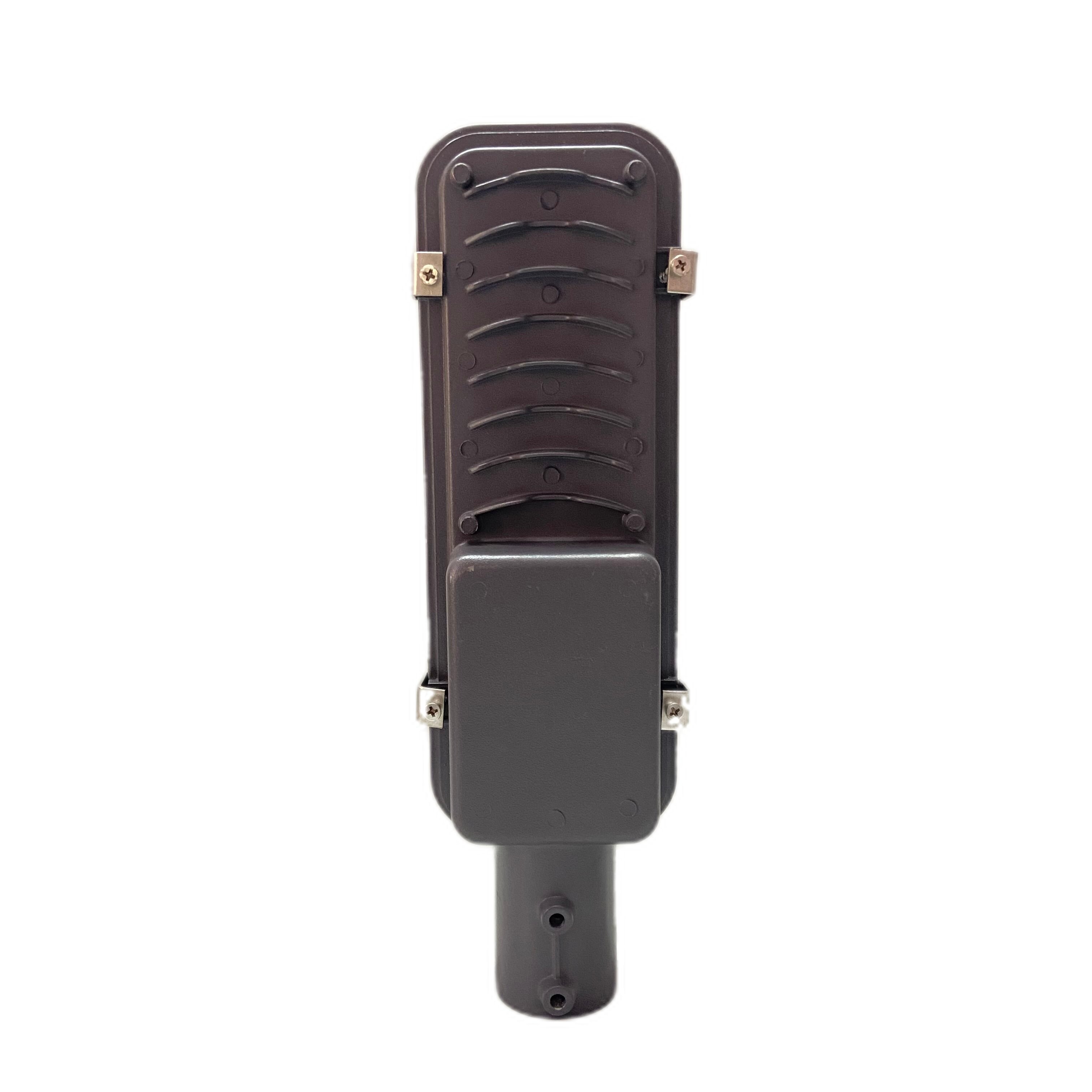

24W LED STREET LIGHT

TECHNICAL SPECIFICATION FOR LED STREET LIGHT OF – 24 WATTS

1. Make(Brand) : Alka Make

2. Input voltage : 90 V to 270 V

3. Rated watt : 24W (cool white/warm white)

4. LED type : SMD type High power LED ( 1 Watt)

5. LED Make : everstar/bridglux/cree/osram.

6. LDE lamp efficacy : Min 130to 140 lumens/watt

7. Luminous flux : 3120 to 3360 lumens

8. Power factor : >0.95

9. Life expecting : 50,000 hours

10. No of hours usage / day : 10 to 12 hours/day

11. Working Humidity : 10% to 90%

12. Ingress protection : IP 65/IP 66

13. Total harmonic distortion (THD): < 15%

14. Colour rendering index : Ra > 80

15. Working Temperature : 20 deg to 50 deg C

16. beam angle : 120 to 160 deg

17. Control Circuit : Compatible to LED

18. Lamp starting time : Not more than 5 sec

19. System power efficiency : > 85 %

20. Fixture : Pressure die cast Aluminum with toughened glass

And waterproof fixture

21. Warranty : 2 Years(repairable)
